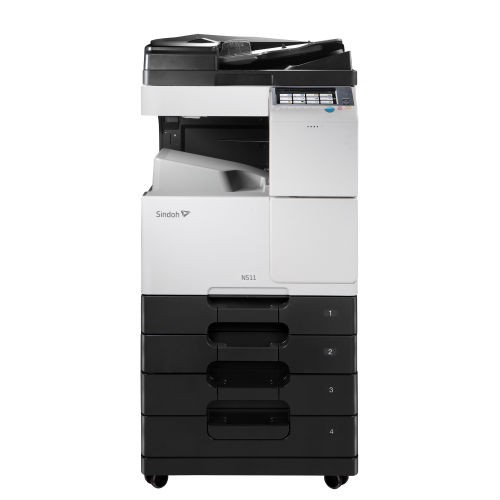

[ A3 Mono Digital MFP ] N511
A3 Mono Multifunctional Digital Copier
[ A3 Mono Digital MFP ] N511

A3 Mono Multifunctional Digital Copier

N511

COPY
  1. Copy speed

    Up to 28ppm

  2. Wake-up time from Sleep Mode

    Less than 20 seconds

  3. Return to Sleep mode

    15 seconds

  4. First-Image-Out Time (FCOT)

    As fast as 5.3 seconds

  5. Memory

    2GB (Max. 4GB)

  6. HDD

    250GB

  7. Maximum Paper Handling

    9,999 sheets

  8. Scan speed (based on 300dpi)

    Up to 45 ppm

  9. Resolution (Scan)

    600 x 600 dpi

  10. Resolution (Output)

    Up to 1,800dpi X 600dpi

  11. Duplex

    Standard

  12. ADF paper loading

    130 sheets (68g/㎡)

  13. Total capacity

    1,100 sheet (500 sheet x 2 + 100 sheet manual tray)

  14. Paper(Tray 1)

    A5 ~ B4

  15. Paper(Tray 2)

    A5 ~ A3, 60 g/㎡ ~ 220 g/㎡

  16. Paper(Manual tray)

    A5 ~ A3, 60 g/㎡ ~ 220 g/㎡

  17. Stacking tray

    250 sheets

  18. Max. power consumption

    Less than 1,500W

  19. Sleep mode

    0.5 W

  20. Noise(In operation)

    Less than 68.7db

  21. Noise(Standby)

    Less than 40.5db

  22. Dimension (W x D x H)

    23 x 26 x 29 in

  23. Weight

    124.6 lb (144.4 lb when the ADF is mounted)

PRINT
  1. Print speed

    Up to 28ppm

  2. Resolution

    Scan : 600 x 600 dpi
    Output : Up to 1,800dpi X 600dpi

  3. PDL

    PostScript 3 (3016) Emulation, PCL 6 (XL Version 3.0) Emulation, PCL 5e/c Emulation, XPS Version 1.0.

  4. OS(Server)

    Windows Server 2003 / Server 2003 R2 / Server 2008 Windows Server2003 / Server 2003 R2 / Server 2008 R2 / Server 2008 R2 x64 Edition / Server 2012 / Server 2012 R2

  5. OS(Client)

    Vista / 7 / 8 / 8.1 Vista / 7 / 8 / 8.1 x64 Edition Windows Server 2003 / Server 2003 R2 / Server 2008 / Windows Server 2003 / Server 2003 R2 / Server 2008 x64 Edition / Mac OS9.2 / OSX 10.2, 10.3, 10.4 PowerPC version / OSX 10.5 PowerPC / Intel version / OSX 10.6, 10.7, 10.8, 10.9, 10.10 Intel version /Red Hat Enterprise Linux

  6. Driver (PCL6)

    Vista / 7 / 8 / 8.1 Printer driver Windows Server 2003 / Server 2003 R2 / Server 2008 Server 2003 / Server 2003 R2 / Vista / 7 / 8 / 8.1 / Server 2008/ Server 2008 R2/ Server 2012 / Server 2012 R2 x64 Edition

  7. Driver (PS3)

    Vista / 7 / 8 / 8.1 PS Windows Server 2003 / Server 2003 R2 / Server 2008 PS Server 2003 / Server 2003 R2 / Vista / 7 / 8 / 8.1 / Server 2008 / Server 2008 R2 / Server 2012 / Server 2012 x64 Macintosh OS9.2 Printer driver PPD file Macintosh OSX 10.2, 10.3, 10.4 PowerPC version PPD+PDE Printer driver Macintosh OSX 10.5 PowerPC/ Intel Version PPD+PDE Printer driver Macintosh OSX 10.6, 10.7, 10.8, 10.9, 10.10 Intel Version PPD+PDE Printer driver PPD file: for Red Hat Enterprise Linux Printer driver (CUPS v1.1.22)

  8. Driver (XPS)

    Windows Vista / 7 / 8 / 8.1 / Server 2008 XPS Driver Windows Vista / 7 / 8 / 8.1 / Server 2008 XPS / Server 2008 R2 / Server 2012 / Server 2012 R2 x64 Edition Driver

  9. Memory

    2 GB

  10. Interface

    Ethernet 10Base-T / 100Base-TX / 1,000Base-T USB1.1, USB2.0, USB Host

SCAN
  1. Scan Mode

    Auto color, full color, gray scale, black and white

  2. Resolution

    Push : 200 / 300 / 400 / 600 dpi
    Pull : 100 / 200 / 300 / 400 / 600 dpi

  3. Scan speed(Color/Black & white)

    Up to 45ppm (A4/300dpi)/Up to 45ppm (A4/300dpi)

  4. Supported size

    Scanner : Max (W x L) 297 x 431.8 mm
    ADF : Max (W x L) 297 x 1,000 mm (≤ 400 dpi)
    Max ( W x L ) 297 x 431.8 mm ( 600dpi )

  5. Interface

    Ethernet 10Base-T / 100Base-TX / 1000Base-T

  6. Protocol

    TCP / IP (FTP, SMB, SMTP, WebDAV) (IPv4 / IPv6)

  7. OS

    Vista (32 / 62 bit) / 7 (32 / 64 bit) / 8 (32 / 64 bit)

  8. Driver

    TWAIN Driver, HDD TWAIN Driver

  9. Data format

    TIFF, PDF, Compact PDF, JPEG, XPS, Compact XPS, PPTx, docx,xlsx Searchable PDF, PDF/A, Linearized PDF

Consumables
  1. Toner

    23,000 sheet (based on the ISO 5% chart)

  2. Drum

    100,000 sheet

  3. Developer(Color/Black & white)

    600,000 sheets
